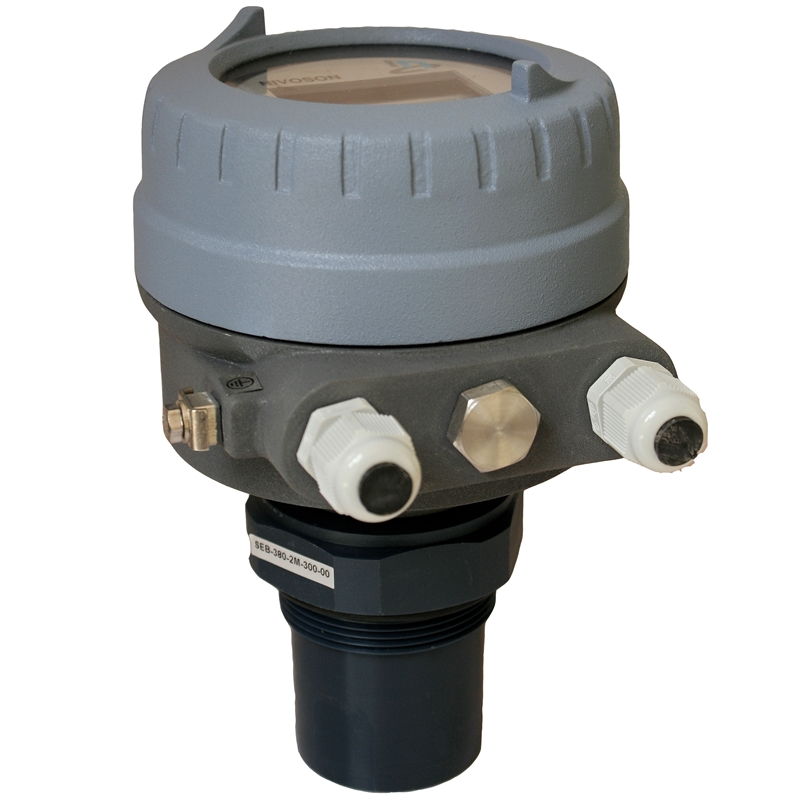

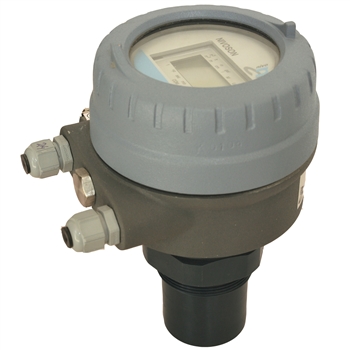

Nivoson - Ultrasonic Level Transmitter

For Non-Contact Level measurement of Liquids

The compact Ultrasonic Level Transmitter, Nivoson, offers non-contact level measurement of liquids stored in tanks. As the instrument does not come in contact with the liquid, its performance is not affected by the chemical properties of the same such as corrosiveness and aggressiveness.

The ultrasonic level transmitter can also be used for accurate and reliable flow measurement of liquids in open channels.

Features

  • 20 pre-programmed flume and weirs
  • 32 but linearization function
  • Temperature compensated
  • Optional Integrated Display
  • 2 totalizers – one resettable and other not resettable.
  • Echo strength analysis
Send Enquiry

Application Examples

  • Level measurement in Fuel Oil Tank

    Level measurement in Fuel Oil Tank

  • Level measurement in Closed Sump

    Level measurement in Closed Sump

  • Technical Specifications
  • Applications
  • Operating Principle
  • Literature
  • Outputs: 4-20 mA (2 wire loop powered)
  • Display: Backlit LCD (optional)
  • Measuring Range: 6, 10 and 15 mtrs
  • Process Connection: Thread or Flanged
  • Transducer Material: PP and PVDF
  • Beam Angle: 5°
  • Accuracy: 0.15% of measured distance

+0.08% of range

  • Process Temperature:     - 30°C to +90° C
  • Process Pressure:   3 bar maximum
  • Housing: Cast Aluminium
  • Protection: IP68 for Sensor and IP67 for Electronics
  • Raw Water
  • Oil
  • Heavy Water
  • Sugar Syrup
  • Chilled Water
  • Beverages
  • Effluent
  • Juices
  • Sewage
  • Acids
  • Alkalis

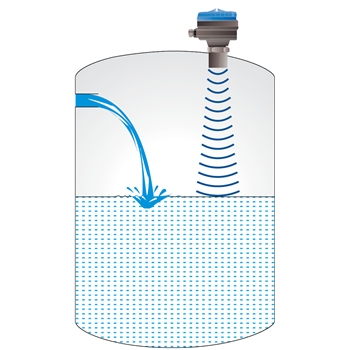

The Ultrasonic level transmitter works on the principle of transmission of ultrasonic waves in air. A pulse is transmitted from the sensor face into the tank. This pulse travels through the air, gets reflected by the liquid surface and returns back to the sensor. The on board electronics measures this total travel time of the pulse and the liquid level is computed.
